December 10, 2005

I finished off the rear spar last night and bolted on the hinge bearing. I ordered some torque seal today too so I can mark all my bolts.

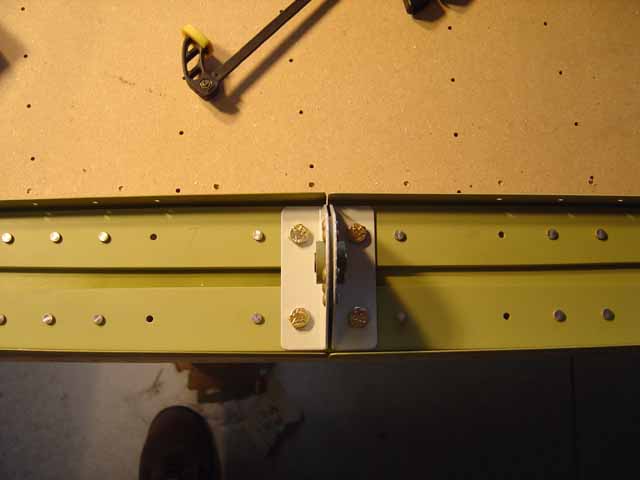

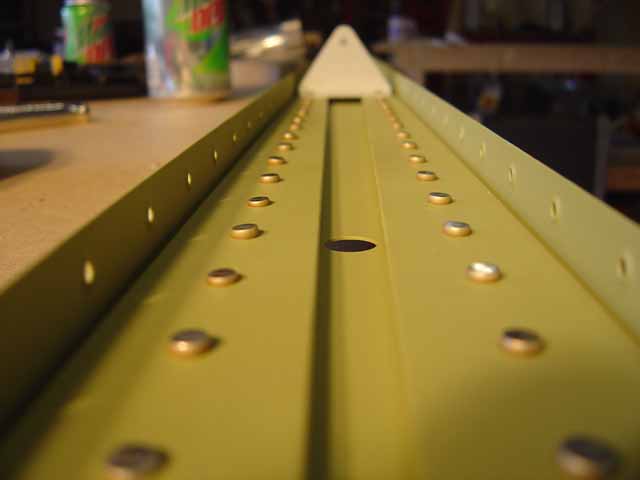

Now them are some good looking rivets...

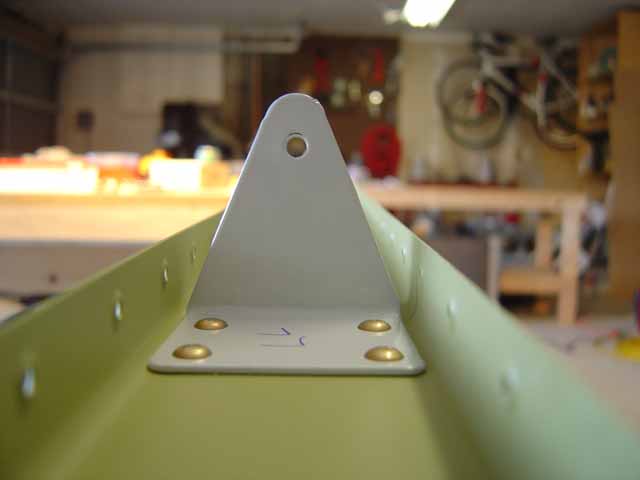

A shot down the hinges. You'd never know you where looking though 8 different hinge plates and a bearing. Everything lines up perfectly.

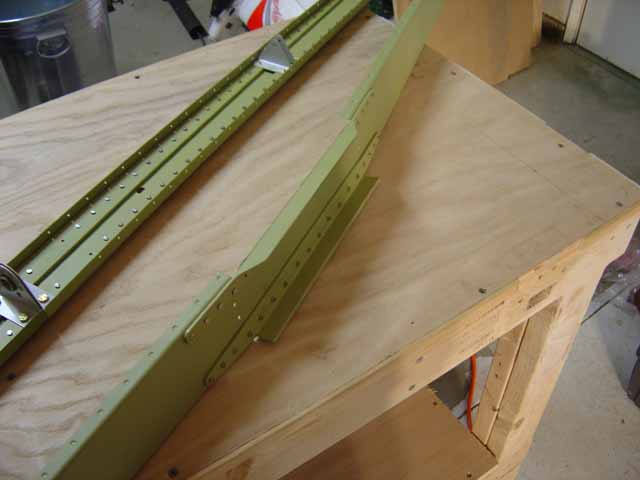

I also finished up the front spar. Or so I thought. Anyone see a problem? I riveted right through where I'm supposed to install ribs. This came back to haunt me and caused me to rebuild this spar.

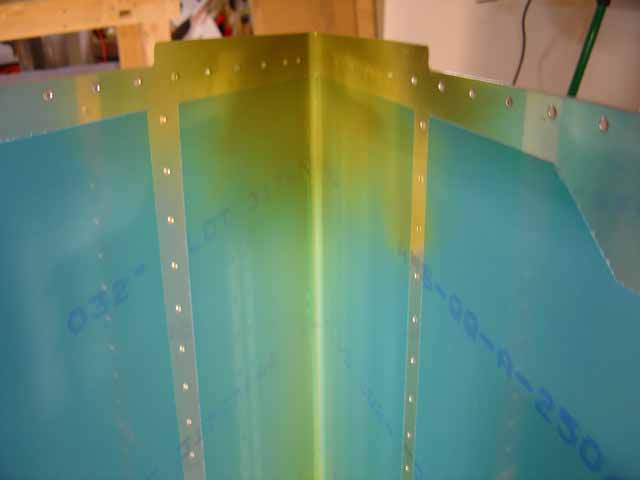

I spot primed the inside of the skins where I had to smooth out some gouges from the ribs.
